Acetal Rod in Stock

Homopolymer Rod (Delrin® Rod), Copolymer Rods, ESD Rods, and Machining Service…

About Acetal Rod

Acetal rod, also known as POM rod, is made of high-quality polyformaldehyde plastic by the extrusion process. It offers excellent wear resistance and chemical resistance. The long operating temperature is from -40 °C to 90 °C. The density ranges from 1.41 to 1.5 g/cm3.

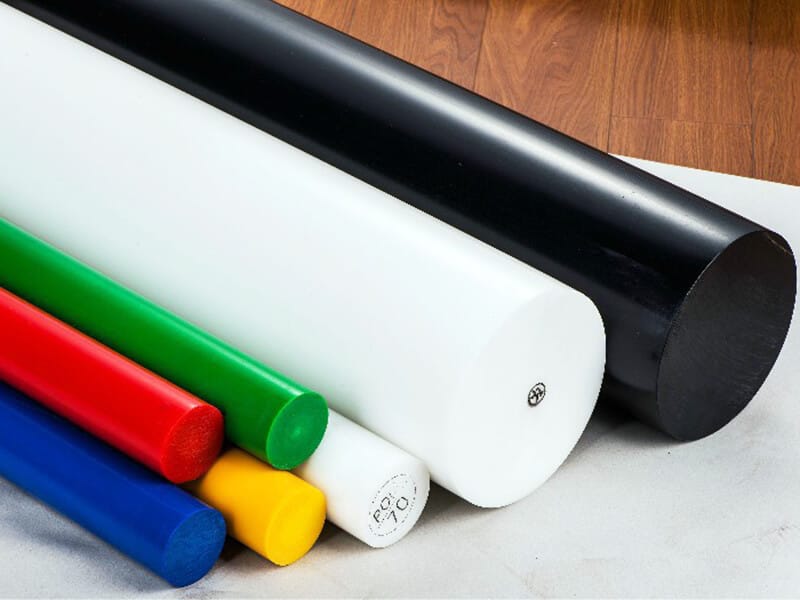

Normally, you can find Acetal Rods with different grades, for example, Homopolymer, Copolymer, Food grade, Static Dissipative (ESD), FDA grade, PTFE-Filled, etc. The common colors are natural color, white, and black. Sometimes, custom colors are available, such as blue, yellow, red, green, grey, etc.

Acetal or POM rods can be machined into precision mechanical components, for example, gears, pulleys, rollers, bearings, housing parts, bushings, cams, valves, seals, gear wheels, and other parts with high stiffness, low friction, excellent dimensional stability, and low thermal expansion.

More Information About Acetal Rod
  • Acetal Rod
  • Delrin rod

    • Specification of Acetal Rod

    Acetal Rods in Stock

    Normally, UVTECO stock acetal rods in three grades, including Copolymer Polyoxymethylene Rod (POM-C Rod), Homopolymer Polyoxymethylene Rod (POM-H Rod or Delrin® Rod) and Static Dissipative (ESD Acetal rod). The color is white or black, and the diameters from 10mm to 500mm.

    ItemModelGradeDiameter (mm)Length (mm)
    POM-C RodUTPOM-RCopolymerFrom 10mm to 190mm1000mm, 2000mm
    POM-C RodUTPOM-RCopolymerFrom 200mm to 280mm1000mm
    POM-C RodUTPOM-RCopolymerFrom 300mm to 500mm1000mm

    ItemModelGradeThickness (mm)Length (mm)
    POM-H RodUTPOM-R-HHomopolymerFrom 20mm to 150mm1000 mm
  • Delrin rod
  • Acetal Rod

    • Grade

    • Homopolymer
    • Copolymer
    • Food grade
    • Glass Filled
    • Metal detectable
    • PTFE filled
    • Static Dissipative
    • UV Resistant
    • Strength Improved
    • Toughness improved

    Color

    • Nature (White)
    • Black
    • Green
    • Blue
    • Red
    • Yellow

    Optional Brand

    • Delrin®
    • SEMITRON®
    • Tecaform®
    • UVTECO®

    Properties of Acetal, Polyoxymethylene (POM) plastic

    ItemDescription
    Product nameAcetal, Polyoxymethylene, or POM Plastic
    Available colorNature (White), Black, Green, Blue, Red, Yellow, Custom color
    DensityFrom 1.41 g/cm3 to 1.5 g/cm3
    FlammabilityHB/UL94

    Mechanical PropertiesTesting MethodUnitValue
    Tensile yield strengthASTM D638psi/MPa9300/64
    Tensile modulus ElasticityISO 527MPa2600
    Tensile Elongation (Break)ISO 527%>30
    Flexural StrengthASTM D790psi/MPa11000/75

    Physical PropertiesTesting MethodUnitValue
    DensityASTM D792g/cc1.41~1.5
    Water absorption
    (Dipping in water at 23°C for 24 hours)    		ASTM D570%16~20

    Thermal PropertiesTesting MethodUnitValue
    Coefficient of Linear Thermal ExpansionAverage value between 23 and 100°Cm/(mk)105×10^-6
    Heat deflection temperatureISO 752°F/°C230/110
    Melting temperature°F/°C330/165
    Max. operating temperature°F/°C180/82

    Electrical PropertiesTesting MethodUnitValue
    Dielectric strengthIEC60243kv/nn>40
    Dielectric constantIEC6025010^6 Hz3.8
    Dissipation Factor0.005
    Volume ResistivityIEC60093ohm (Ω)10^13

    Main Usage of Acetal Plastic

    • Automotive trim parts
    • Bearings and bushings
    • Boat accessories
    • Electronic component housings
    • Pump and valve parts
    • Scraper blade
    • Rollers and Gears;
    • Valves and Manifolds
    • Wear parts;
    • Industrial parts by injection molding;

    Main Feature of Acetal Plastic

    • Outstanding wear resistance and sliding properties;
    • Good machinability;
    • Low water absorption rate and good chemical resistance;
    • High impact resistance, even at low temperatures;
    • Good dimensional stability and creep resistance, when machined or worked;
    • Low moisture absorption;
    • Excellent electrical properties;
    • Unfilled grade is FDA compliant;

    Industry

    • Electrical and 3C;
    • Energy Industry;
    • Aircraft & Aerospace Industry;
    • Medical;
    • Food processing;
    • Low moisture absorption;
    • Automobile Industry;

    Can’t find what you need? Or Need custom Acetal Rod?

    Need A Fast Quotation
    Need A Help From UVTECO

    Leading Supplier of Acetal Rod In China

    As one of the leading suppliers of Acetal Rods in China, UVTECO offers acetal rods in various grades, including Homopolymer, Copolymer, Glass-filled, Static Dissipative (ESD), etc. The diameter is from 10mm to 500mm. Otherwise, UVTECO provides machining services, including lathe turning, drilling, cutting, CNC machining, and injection molding etc.

    As an ISO-certified company, UVTECO stocks frequently used Acetal rods for fast delivery, available in natural, white, and black colors. Meantime, we provide high-quality POM-based products and parts/components for more than 2500 clients from more than 45 countries, who are working in automation, the automobile industry, medical industry, food industry, aerospace industry, appliance industry, electrical & electronic, etc.

    Contact UVTECO for machining Acetal Rod

    Related Blogs about Acetal Rod

    Frequently Asked Questions about Acetal Rod

    Yes, UVTECO has precision equipment to machine acetal rods according to the drawings from global clients. Otherwise, we provide the CNC Machining, Drilling, injection molding, and extrusion process.

    We have practised employees and experienced engineers, we like challenges in machining the complicated POM parts.

    Normally, we stock the frequently-used acetal rods, for example:

    • Copolymer Polyoxymethylene Rod (POM-C).
    • Pomopolymer Polyoxymethylene Rod (POM-H) or Delrin rod.

    Delrin® is a brand of DuPont Company, normally, it is POM Homopolymer (POM-H).

    UVTECO stocks acetal rods and Delrin® Rods with common sizes, therefore, we don’t have a requirement for Min Order Quantity.

    If you only need Acetal Rods in a small amount, I suggest that UVTECO machine it or cut it to a smaller length.it is easier for delivery.

    There are many factors for tolerance when machining Acetal parts, for example:

    • Environmental temperature;
    • Machining process;
    • Material quality;
    • Cutting fluid;

    UVTECO has more than 20 years of experience in machining acetal parts. You can send your drawings in .STEP file, we are happy to share our experience and knowledge.

    Acetal Rods are made of polyformaldehyde plastic, which includes two grades

    • Copolymer: POM-C;
    • Homopolymer: POM-H, also called Delrin®

    Normally, Acetal Rod is POM-C Rod, POM-H Rod is Delrin® Rod.

    Acetal or Polyoxymethylene (POM) has a wide range of applications. It can be made into sheets, rods, and tubes by the extrusion process, and also be made into parts by the injection molding process.

    These parts are used in the automotive industry for trim parts. They are also used in boat accessories, bearing and bushing, pump, and valve parts.

    Acetal is also used in wear parts, industrial parts, electronic component housing, mechanical gears, etc. We also manufacture medical products and sports equipment from POM.

    POM plastic is very strong, durable, and has very good sliding properties. It also has excellent wear resistance and great dimensional stability. POM also absorbs very little water, which makes it good for water usage.

    Compared to metal, POM has good design flexibility, high strength-to-weight ratio, and corrosion resistance.

    POM Plastic has a high tensile strength of 9300 psi, which refers to very strong mechanical properties. This allows it to withstand very heavy loads without deformation.

    It is highly impact-resistant and often considered as strong as metals. So, it is used alternatively to metal, where a lighter alternative is required.

    Proper heat and pressure are applied to POM to mold it. Before that, POM resin is provided in granulated form.

    However, extrusion, injection molding, compression molding, blow molding, or rotational molding are primarily used for POM. Injection molding and extrusion are the most used moldings.

    Here are the basic characteristics of polyoxymethylene.

    • Strong, rigid, and tough.
    • Has good temperature resistance and can operate at around 90°C
    • Has very good chemical resistance.
    • Has good tensile strength but is easy to machine.
    • POM is creep- and fatigue-resistant.
    • POM has very good sliding properties, wear resistance, and water resistance features.

    Acetal, Polyoxymethylene is naturally opaque white because of its high crystalline composition. So, nothing is seen through the POM sheet. It neither reflects nor emits light.

    You will see this translucent thermoplastic polished or glossy finish. This is because of its rigidity and smooth surface texture.

    There are different POM grades available for particular applications. Some of them are:

    • Homopolymer
    • Copolymer
    • Food grade
    • Metal detectable
    • UV-resistant
    • High-impact
    • Unreinforced grade
    • Reinforced POM
    • Low-friction POM
    • Unfilled POM
    • Strength-improved POM
    • Static Dissipative
    • Glass-filled, etc.

    Hydrolysis resistance means the ability to withstand heat and humidity or withstand hot water. The hydrolysis resistance of standard homopolymer POM and copolymer POM differs.

    Homopolymer has a hydrolysis resistance of 60°C. On the other hand, copolymer has a hydrolysis resistance of 85°C.

    The natural color of polyoxymethylene is opaque white. But you can dye it in many colors. The common colors they are dyed are usually black, green, blue, red, and yellow.
