Extruded/Cast Acrylic Rods in Stock

Diameter from 2mm to 300mm, More than 20 colors, and Machining Service…

About Acrylic Rod

Acrylic rods are made of high-quality acrylic plastic through the extrusion or casting molding processes. They offer different performances and are used for different applications, but both rods offer excellent optical transparency, good chemical resistance, and outstanding machinability.

Extruded acrylic rods are made of quality acrylic plastic particles. They offer flexible lengths, a wide range in diameter, and a variety of colors. Usually, it is used for POP displays, DIY items, light guide columns, etc.

Cast acrylic rods are made from liquid polymethyl methacrylate. Some suppliers get cast acrylic rods from cast acrylic sheets by turning processing. Therefore, they offer excellent optical transparency and tight tolerance in diameter, but the color is limited. Normally, it is used for medical equipment, furniture, some components by CNC machining, etc. It is obvious that cast acrylic rod is more expensive than extruded acrylic rod.

As a leading supplier of acrylic rods in China, UVTECO stocks extruded and cast acrylic rods with large range in colors and diameters for fast delivery to global clients. Meantime, we also provide machining services, including cutting, CNC turning, bending, drilling process. Today, we provide high-quality acrylic products to more than 4000 clients from global market.

cast acrylic rod
Extruded acrylic rod

Specification of Acrylic Rod

Extruded acrylic Rods in stock

Extruded acrylic rods offers excellent light transmittance, wide range of colors, flexible length and lower price than cast acrylic rod. As a leading manufacturer of extruded acrylic rod in China, UVTECO stock acrylic rods with common size. Meantime, we provide custom acrylic rod and machining services. Today, our acrylic rods have been delivered to more than 40 countries.

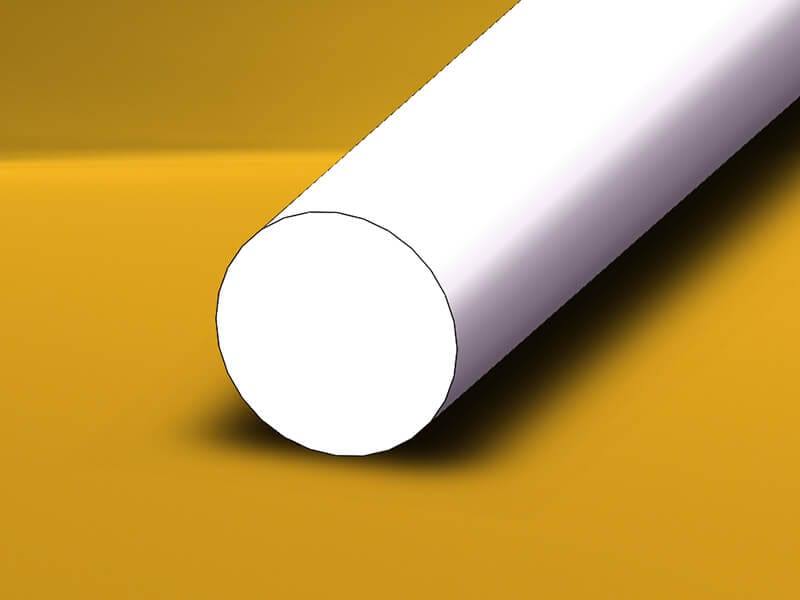

  • Round Acrylic Rod
    Round Rod

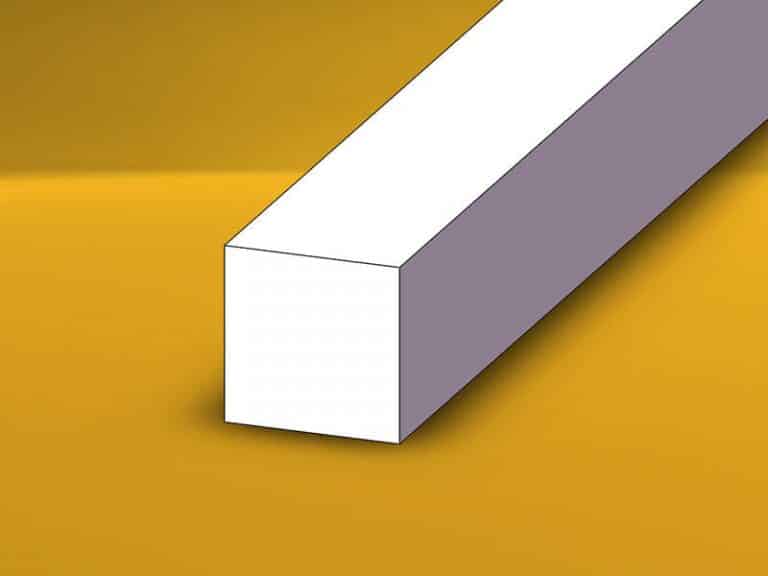

  • Square acrylic Rod
    Square Rod

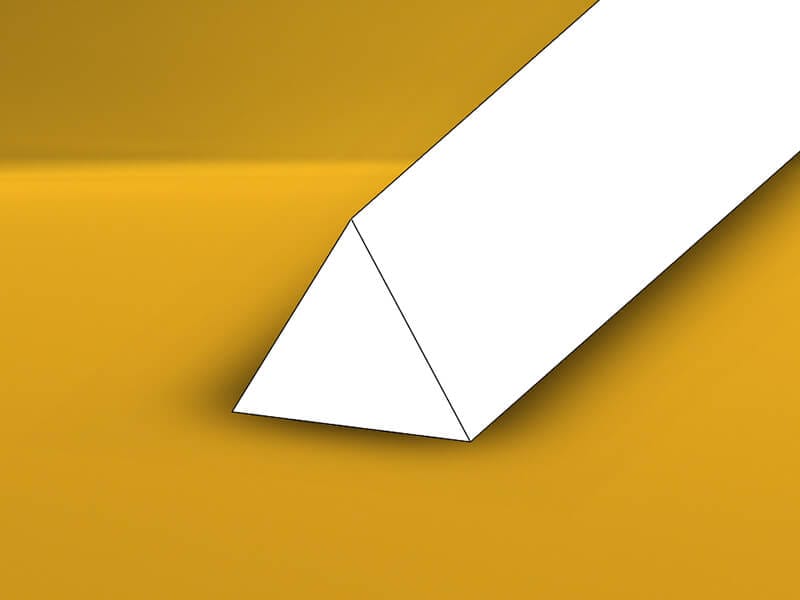

  • Equilateral triangle acrylic rod
    Equilateral Triangle Rod

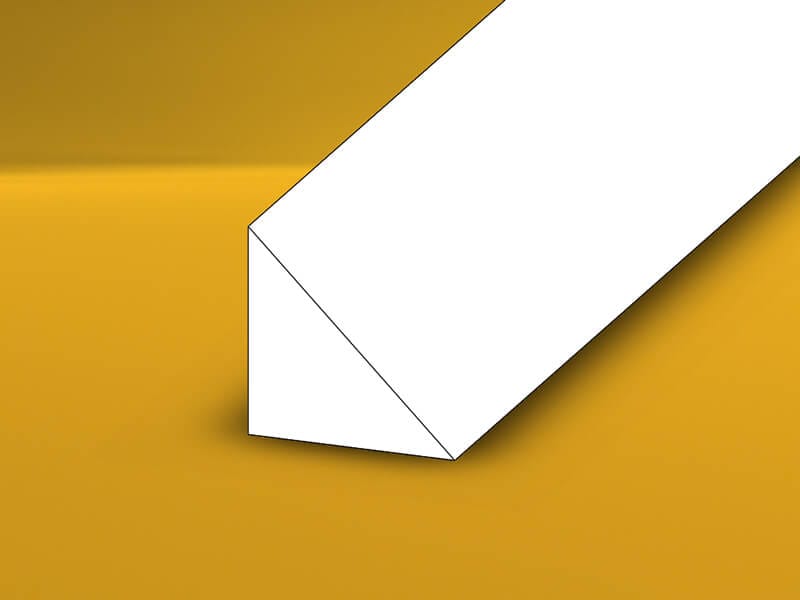

  • right triangle acrylic rod
    Right Triangle Rod

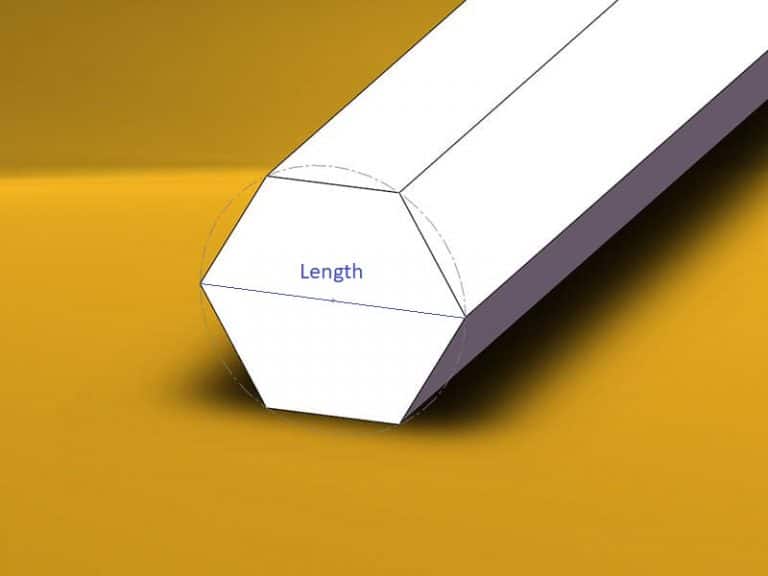

  • Hexagon acrylic Rod
    Hexagon Rod

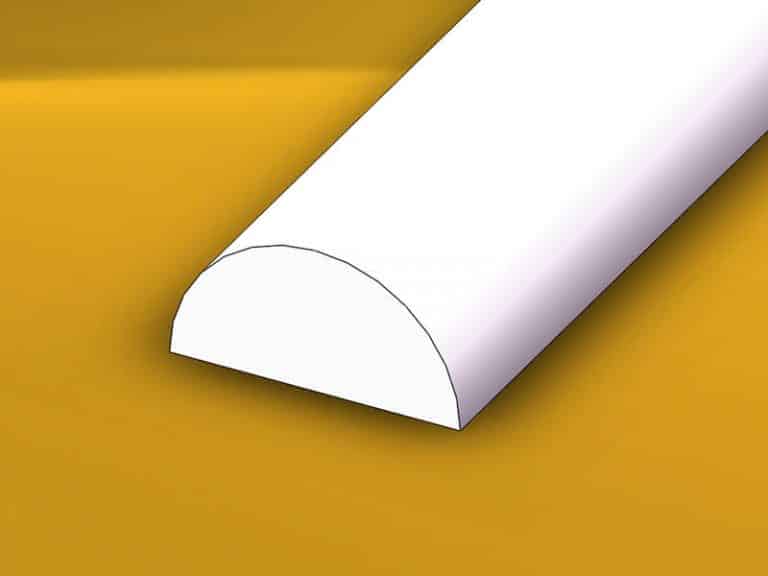

  • semicircle acrylic rod
    Semicircle Rod

ItemModelDiameter (mm)Length (mm)
Round RodUVERO-O1, 2, 3, 4, 5, 6, 8200, 1000
Round RodUVERO-O10, 12, 15, 18, 20, 251000, 2000
Round RodUVERO-O30, 35, 40, 45, 50, 551000, 2000
Round RodUVERO-O60, 65, 70, 80, 901000, 2000
Round RodUVERO-O100, 110, 120, 150, 1801000, 2000
Round RodUVERO-O200, 220, 250, 300, 3501000, 2000
Round RodUVERO-O-CUCustom DiameterCustom Length

ItemModelSide Length (mm)Length (mm)
Square RodUVERO-SQ2, 3, 4, 5, 6, 8, 10, 12, 151000, 2000
Square RodUVERO-SQ18, 20, 24, 25, 30, 35, 401000, 2000
Square RodUVERO-SQ45, 50, 60, 70, 80, 1001000, 2000
Square RodUVERO-SQ-CUCustom Side LengthCustom Length

ItemModelSide Length (mm)Length (mm)
Equilateral Triangle RodUVERO-ET10, 15, 20, 25, 301000, 2000
Equilateral Triangle RodUVERO-ET35, 40, 45, 501000, 2000
Equilateral Triangle RodUVERO-ET-CUCustom Side LengthCustom Length

ItemModelSide Length (mm)Length (mm)
Right Triangle RodUVERO-RT3, 4, 5, 10, 15, 181000, 2000
Right Triangle RodUVERO-RT20, 25, 30, 38, 40, 501000, 2000
Right Triangle RodUVERO-RT-CUCustom Side LengthCustom Length

ItemModelDiameter (mm)Length (mm)
Hexagon RodUVERO-HE10, 12, 15, 20, 25, 301000, 2000
Hexagon RodUVERO-HE35, 40, 45, 50, 55, 601000, 2000
Hexagon RodUVERO-HE-CUCustom Side LengthCustom Length

ItemModelDiameter (mm)Length (mm)
Semicircle RodUVERO-SE5, 10, 12, 15, 20, 251000, 2000
Semicircle RodUVERO-SE30, 40, 50, 60, 75, 801000, 2000
Semicircle RodUVERO-SE-CUCustom Side LengthCustom Length

available Colors of Extruded acrylic Rods

  • transparent polycarbonate
    Clear
  • opaque polycarbonate White
    White
  • opaque polycarbonate black
    Black
  • translucent polycarbonate gray
    Gray
  • translucent polycarbonate brown
    Brown
  • translucent polycarbonate yellow
    Yellow
  • translucent polycarbonate blue
    Blue
  • translucent polycarbonate green
    Green
  • translucent polycarbonate Red
    Red

Cast Acrylic Sheet in stock

Cast acrylic rod is made of high quality liquid PMMA material, it offers high light transmittance, excellent strength, outstanding machinability and and strict tolerance in diameter. We stock transparent cast acrylic rods with diameter from 5mm to 150mm. Meantime, we provide machining services for global clients.

ItemModelDiameter/mmLength/mm
Cast acrylic rodUVCRO-O3, 4, 5, 8, 10, 12, 151000
Cast acrylic rodUVCRO-O20, 25, 30, 40, 45, 501000
Cast acrylic rodUVCRO-O55, 60, 65, 70, 80, 901000
Cast acrylic rodUVCRO-O100, 120, 140, 1501000
Cast acrylic rodUVCRO-O-CUCustom DiameterCustom Length
  • UVTECO provides cutting service and machining service;
  • For more information about Cast Acrylic Rods in stock, please send E-mail to info@uvteco.com;
cast acrylic rod

Properties of Acrylic Rod

Compared with polycarbonate rod, acrylic rod offers higher optical clarity, better machinability, excellent chemical resistance, more colors, similar density, and lower impact resistance. It is easier to be polished for crystal surfaces. Therefore, the acrylic rod is used widely for POP displays, light guide rods, furniture, industrial parts, etc.

ItemDescription
Product nameAcrylic Rod, plexiglass Rod
Density1.2 g/cm3
Natural ColorTransparent or colored
Diameter rangeFrom 1mm to 350mm
Working temperatureFrom -20℃ to 70℃

Mechanical PropertiesTesting StandardUnitValue
Tensile StrengthASTM D-638Mpa68
Tensile Modulus of ElasticityASTM D-638Mpa2700
flexural strengthaSTM 790Mpa115
flexural modulus of elasticityASTM 790mpa3300
Surface hardness//HB
Charpy impact strength (unnotched)/KJ/m217

physical propertiestesting standardunitvalue
SpecificASTM D792g/cm31.2
water absorption(immersion 24 hours23℃ 60%RH%0.2

thermal propertiestesting standardunitvalue
coefficient of linear thermal expansionASTM D-69610-5 m/m-℃7.2
Vicat Softening PointASTM D-1525℃105
max continuous service temperature in air–℃75

other propertiestesting standardunitvalue
coefficient of frictionDIN 53375–/

Main Usage of Acrylic/plexiglass Rod

  • POP Displays;
  • Light Guide Rod;
  • Exhibition supplies;
  • Transparent furniture;
  • Podiums;

Main Feature of Acrylic/plexiglass sheet

  • Excellent optical clarity, up to 92% light transmission;
  • 50% lighter weight than glass, but much stronger;
  • Easy to be machined by turning-lathe;
  • Easy to be thermoformed to any shape;
  • Easy to be polished to glass;
  • Easy to be gluded;
  • Wide range in color;
  • Excellent chemical resistance;

Can’t find what you need? Or have a technical question?

Need A Fast Quotation
Need A Help From UVTECO

Leading Supplier of Acrylic/Plexiglass Rods in China

UVTECO offers extruded acrylic rods and cast acrylic rods in wide range in colors and diameters. And we also stock them in common colors and dimensions for fast delivery to global clients. In the meantime, UVTECO provides the integrated machining solution for acrylic rods, the main machining methods include cutting, CNC Turning, hot bending, dyeing, electroplating. Today, we are providing high-quality acrylic rods to more than 2,500 clients from more than 45 countries.

Contact UVTECO for machining Acrylic/Plexiglass Rod service

Related Blogs about Acrylic/Plexiglass Rod

Frequently Asked Questions about Acrylic/Plexiglass Rod

When you heat it more than 80 ℃, the acrylic rods will soften, and you can bend it easily.

If you bend it for a DIY project with a small quantity, you can use a heat gun to heat it and bend it by hand. If you need to bend acrylic rods in large quantities, you need to heat them in an oven and put the heated acrylic rods on a special jig.

If you don’t know how to bend acrylic rods, contact UVTECO and send your drawings, we will be a trustworthy supplier of bending acrylic rods.

UVTECO provides acrylic rods with more than 10 colors. Usually, we stock them with a standard diameter and length.

The standard length of acrylic rods includes 500mm, 1000mm and 2000mm, but we can cut it to any length. In the meantime, we provide acrylic rods with custom lengths.

Please send your requirements to Email info@uvteco.com.

Yes, you can use Ethyl Alcohol to clean acrylic rod, because it offers exllent chemical resistance.

Yes, UVTECO can machine acrylic rods. The machining process includes cutting, turning, bending, polishing, etc.

Just send your drawings to info@uvteco.com

Acrylic rods and polycarbonate rods are popular plastic rods. Please see the main difference Acrylic rod Vs. polycarbonate rod:

PropertyAcrylic rodPolycarbonate rod
ColorTransparent, coloredTransparent only
TransparencyExcellentGood
MachinabilityExcellentExcellent
Chemical resistanceGoodBad
DyeYesNo
Hot bendingEasyHard
Polish surfaceEasyNo
Impact resistanceNormalGood
Temperature resistance70℃120℃
